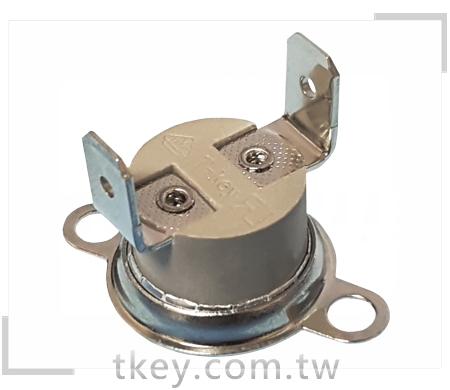

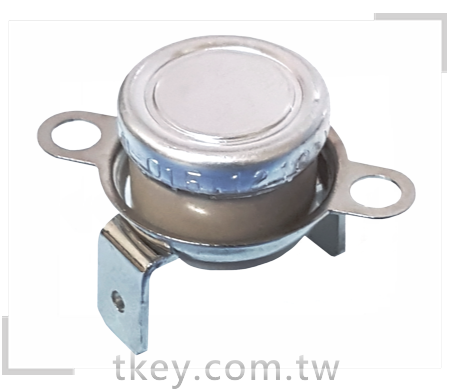

1C4-026 Thermostat|Temperature control switch|Overheat Protector|Thermal cut-off
Base :
Thermoplastic
Reset :
Auto Reset
Contact :
Normally Close / Normally Open

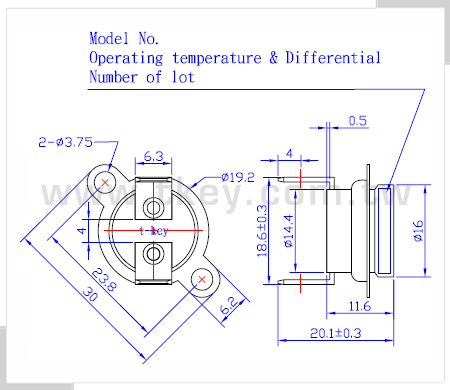

Mounting :
Surface mounting bracket
Terminal :
6.3mm(0.8mm Thickness) 90° Quick connect
Temperature :
Maximum operating temperature 185 deg.C
Applications:
Espressor machines, Vending machines, Toaster, Photo copier, Roomheater, UPS, Microwave, and Other household appliances and heating appliances.

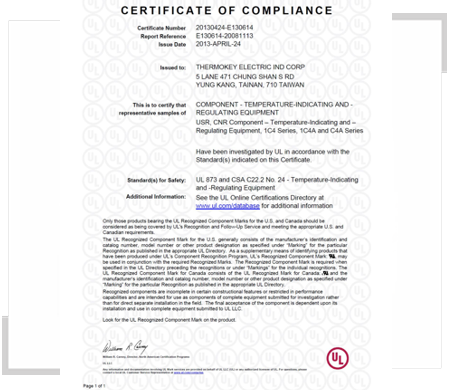

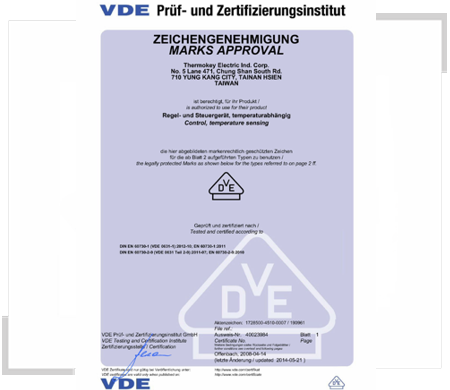

Approvals: UL、CUL、VDE、TUV

Electrical Specification:
  • Electrical Ratings：
    C4/1C4 Series：AC 250V/10A , AC 125V/15A
        1C4A Series：    AC 250V/10A , AC 125V/15A
  • Dielectric Strength：AC 1500V , 60 sec
  • Insulation Resistance：100 MΩ or more
  • Contact Resistance：50 mΩ or less
  • Life Cycles：
    C4/1C4 Series：Over 100,000 cycles under rated load
        1C4A Series：Over 6,000 cycles under rated load

Thermal Specification:
  • Ambient Temperature：C4 Series(250℃)
  • ​Actuating Temperature：
        C4 Series (Maximum 210℃)
      1C4 Series (Maximum 185℃)
    1C4A Series (Maximum 185℃)
  • Tolerance：±3℃、±5℃
  • Differential：
    C4/1C4 Series：Normally 10℃ to 20℃ and other differentials can be specified

Other Features:
Compact dimension with high load capacity
High operating speed
Current insensitive
